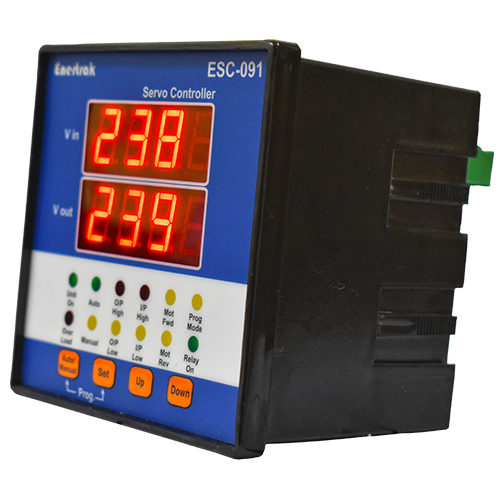

Smart Servo Controller ESC-091

Micro-Controller based control & metering solution for servo voltage stabilizer, ‘ESC-091’ Servo Controller is total metering and control solution for servo stabilizers for wide range of input voltage and wide rang of load requirement.

product-rotate-img
product-rotate-img
product-rotate-img
product-rotate-img
product-rotate-img
product-rotate-img
product-rotate-img

Click for 360° View

icon

Wide range of Aux supply from 80-300 Vac (With Built in SMPS)

gprs1
icon

Digital Multi Parameter with 7 Segment Bright display for Input- Output Voltage & Current

gprs1
icon

1nos potential free relay out put for over/under voltage & over load protection

gprs1
product-rotate-img
icon gprs4

RS-485 port communicates as per MODBUS Protocol & can be easily configured to an Enertrak GPRS modem

icon gprs5

Advance 32 Bit, 100 Pin, Processor Multifunction Meter with Accuracy Class 1.0

icon gprs5

Fault indication by LEDs for over load, Input high-low, Output high-low, rev-fwd, overload

Specifications

  • Micro-Controller based control & metering solution for servo voltage stabilizer, ‘ESC-091’ Servo Controller is total metering and control solution for servo stabilizers for wide range of input voltage and wide rang of load requirement. This reduces production overheads like wiring and testing and increase production rate of the voltage stabilizers. Designed with latest micro-controller technology. The servo controller integrates multi parameters and servo AC synchronous motor controller driver.

Key Features

  • Wide range of Aux.supply from 80-300 Vac (With Built in SMPS)
  • Digital Multi Parameter with 7 Segment Bright display
  • Standard cut out (92 X 92) with low depth-65 mm
  • Easy for servicing/replacing at site
  • Fault indication by LEDs for Over Load,Input High,Output High,Input Low,Output Low
  • Password Protection for securing mishandling by Un-authorizedPerson.
